Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Advantage
► Smallest media converters available; tuck the unobtrusively behind a PC
► 10/100 /1000Base-T to 100/1000Base-X SFP
► SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
► USB-powered for portability, or use 5~15VDC wide range power input
► Ultra compact and weigh less than 2 ounces
► Support 9k jumbo frame
► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
► Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
► Including a Power Supply
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Overview
LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology
to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.
Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and
100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with
optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper
cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual
fiber and single mode single fiber.
When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the
omputer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications
where you need Gigabit fiber connectivity but local power isn’t available.
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Technical Indexes
|
Parameter
|
Specifications
|
|
Access mode
|
10/100/1000Mbps Gigabit Ethernet
|
|
Standard
|
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
|
|
Fiber Port
|
SFP - 100/1000M adaptive
|
|
Wavelength
|
850nm/1310nm/1550nm (Based on SFP Module used)
|
|
Transmission distance
|
Fiber Cable: Depends on SFP Module
Category-5 twisted pairs: 100m
|
|
Port
|
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs
One Optical port: SFP
|
|
Conversion means
|
Media conversion
|
|
LFP
|
Not Support
|
|
BER
|
<10-9
|
|
MTBF
|
100,000 hours
|
|
LED indicator
|
PWR (Power supply)
TX (LINK100/1000, TP cable rate 100/1000M)
FX/ACT (Optical link action /TP cable packet forwarding action)
|
|
Power supply
|
DC 5~15V (Type-C)
|
|
Power consumption
|
<3W
|
|
Operating temperature
|
0~45ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
|
Weight
|
46g
|
|
Dimensions (W x D x H)
|
78 x 27 x 18 mm
|

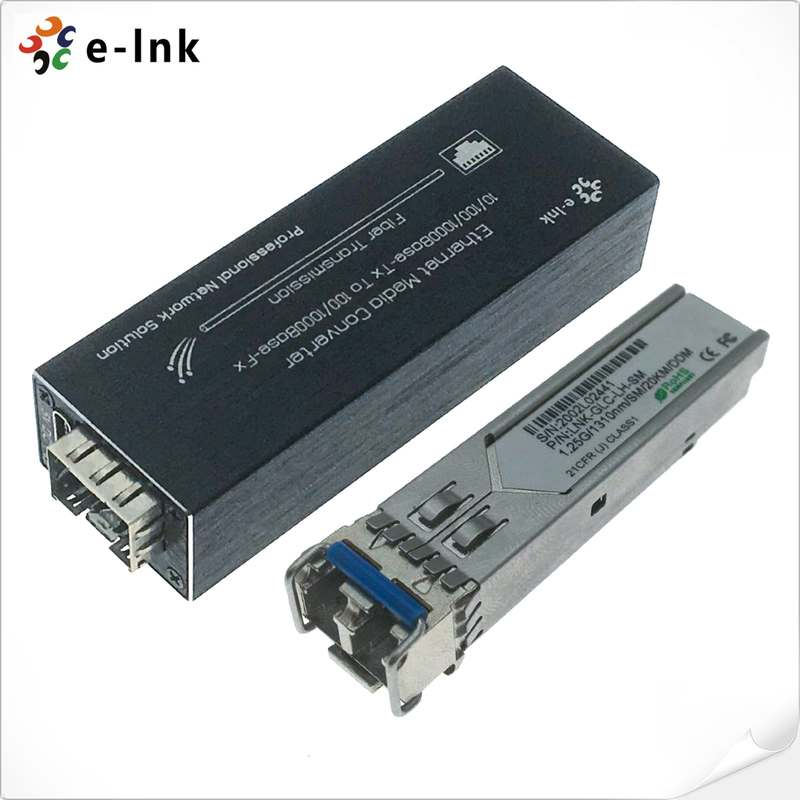

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Pictures
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter Application
