Passive PoE Kit Injector Splitter 57V Power Over Ethernet AP IP Camera

Detalhes do produto

Lugar de origem: CHINA

Marca: E-link

Certificação: ISO9001, CE, ROHS, FCC

Número do modelo: LNK-POE-2P

Termos de pagamento e envio

Quantidade de ordem mínima: 1pcs

Preço: US$1.5-US$2.0

Detalhes da embalagem: Embalagem padrão da caixa dos acessórios da fibra ótica de HDMI

Tempo de entrega: 1-3 dias úteis

Termos de pagamento: T/T, Western Union, MoneyGram, PayPal

Habilidade da fonte: 1000/mês

Obtenha o melhor preço
Contacte agora
Especificações
Destacar:
Pino de alimentação::
4, 5, 7, 8 (12~57V)
Caso de material:
PVC
Cabo da rede:
T IA/EIA 568 Cat. 5
Conector de cabo Ethernet:
RJ-45
Taxa de dados Ethernet:
10/100 Mbps
Dimensões:
210 x 19 x 19 mm
Pino de alimentação::
4, 5, 7, 8 (12~57V)
Caso de material:
PVC
Cabo da rede:
T IA/EIA 568 Cat. 5
Conector de cabo Ethernet:
RJ-45
Taxa de dados Ethernet:
10/100 Mbps
Dimensões:
210 x 19 x 19 mm
Descrição
Passive PoE Kit Injector Splitter 57V Power Over Ethernet AP IP Camera

Passive PoE Kit Injector Splitter 57V Power Over Ethernet AP IP Camera

Model : LNK-POE-2P


 Product Description & Overview

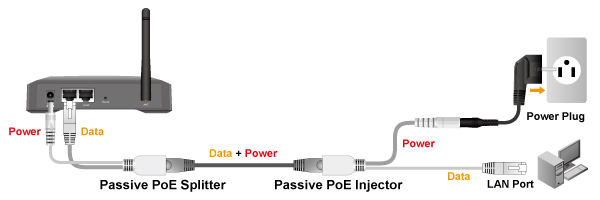

The LNK-POE-2P represents an economical yet highly practical Passive PoE Kit that provides a complete

power and data transmission solution for network devices. This comprehensive package includes both a

passive PoE splitter and passive PoE injector, offering users the most straightforward approach to implementing

Power over Ethernet without requiring specialized equipment or complex installation procedures.


Designed for maximum compatibility and ease of use, this passive PoE adapter kit eliminates the challenges

of power source availability when deploying network devices such as wireless access points and IP cameras.

The system utilizes standard power adapters that typically accompany your network equipment, removing the

necessity for dedicated PoE power supplies and significantly reducing overall implementation costs. This plug-

and-play solution enables quick deployment in various scenarios including home networks, small business

environments, and temporary installations where conventional PoE infrastructure is unavailable or impractical.


The passive PoE injector and splitter combination ensures reliable power delivery through standard Ethernet

cabling, providing flexibility in device placement while maintaining network performance. Ideal for budget-

conscious projects and rapid deployments, this cost-effective PoE kit offers an accessible entry point into

Power over Ethernet technology while maintaining compatibility with a wide range of network devices. Its

simplified design and straightforward operation make it particularly suitable for non-technical users, small

office setups, and scenarios where traditional active PoE solutions would be cost-prohibitive or unnecessarily

complex for the application requirements.


Key Features Bullets

  • Complete Passive PoE Solution
    Includes both passive PoE splitter and injector for immediate deployment

  • Universal Device Compatibility
    Supports various network equipment including APs, CPE, IP cameras, and IP phones

  • Flexible Power Supply Integration
    Utilizes existing powered device power supplies for cost-effective installation

  • Wide Voltage Input Range
    Accepts up to 57V input for versatile power adaptation

  • Plug-and-Play Installation
    Simple setup requiring no technical expertise or special tools

  • Cost-Effective PoE Implementation
    Eliminates need for expensive active PoE switches and equipment

  • Standard Ethernet Cable Utilization
    Transmits both data and power through regular network cables


Technical Specifications & Indexes

Interface

 Data pin: 1,2,3,6

 Power pin: 4, 5, 7, 8 (12~57V)

Case of material

 PVC

Network cable

 T IA/EIA 568 Cat. 5

Ethernet data rate

10/100 Mbps

Ethernet cable connector

 RJ-45

Operating Temperature

 0°C - 40°C (32°F - 104°F)

Storage temperature

 -40°C - 70°C (-40°F - 158°F)

Operating Humidity

 10% ~ 80% (non-condensing)

Storage Humidity

 5% ~ 90% (non-condensing)

Product Weight (g)

 55g

Dimensions

 210 x 19 x 19 mm

( L x W x H (mm) )



Ordering information

Item

Description

LNK-POE-2P

Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector



Application Scenarios

  • Providing basic PoE connectivity for small office network devices

  • Supporting wireless access point installations in budget-conscious deployments

  • Enabling IP camera power delivery in residential security systems

  • Powering CPE devices in small-scale wireless network deployments

  • Supporting IP phone installations in small business environments

Passive PoE Kit Injector Splitter 57V Power Over Ethernet AP IP Camera 0
