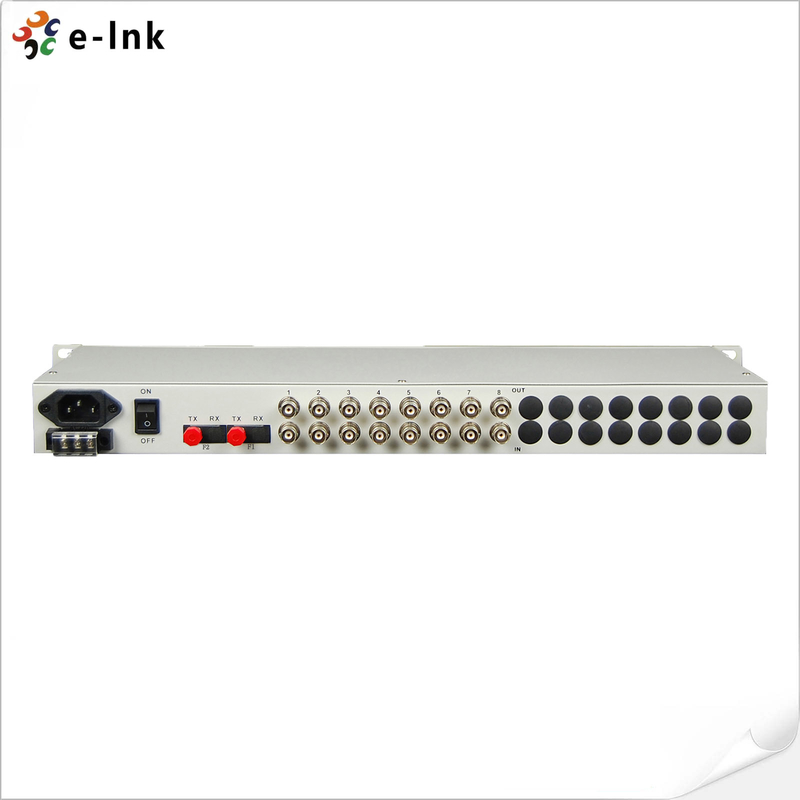

16E1+4GE+LCD+SNMP PDH Multiplexer

16E1+4GE+LCD+SNMP PDH Multiplexer

Advantages

· Provides 16 E1 transparent transmission;

· With char 16*2 LCD display and SNMP agent inside

· Provide Console manage interface (RS232)

· Provide two fiber interface 1+1 protect(APS)function ,and ALS(Automatic Laser Shutdown/Reduction)function

· Ethernet interface rate is 10M/100M/1000M, half/full duplex auto- adaptable

· 4Channel Ethernet interface is switch interface, support VLAN, can set to 4 channel logical isolation

· Provide one hotline channel for option,

· Provide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission

· The rate of optical port is 1.25Gbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;

· E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703,G.823 and G.742;

· Ethernet port supports VLAN function and has 4devision mode for user selection;

· Ethernet package size support 1916 byte and 4 Ethernet port could be set separately；

· Has complete alarm function and can monitor remote device status;

· Supports E1 loop from remote so as to detect and manage device conveniently;

Overview

This device has the console control ,provides the 1+1 fiber path protection, point to point optical transmission, LCD display , on the basic of our company development of the PDH optical transmission, use the special VLSI and the SNMP NMS.

The device provides 1-16Channel E1 interface, 1-4Channel 10/100/1000M Ethernet interface (Line Rate 1000M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 2 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size

Technical Indexes

VApplication
