Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Name: Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-DAN-D1
Price: 369.00 USD
Availability: InStock

Detalhes do produto

Place of Origin: China

Marca: E-link

Certificação: CE，FCC

Model Number: LNK-DAN-D1

Documento: E-link LNK-DAN-D1 Dante Don....0.pdf

Termos de pagamento e envio

Minimum Order Quantity: 1pcs

Preço: Negociável

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:

Size:	115x 34 x 28 mm	Weight:	70g
Operating temperature:	-5 to +55℃	CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount	Power:	802.3af PoE

Size:	115x 34 x 28 mm
Weight:	70g
Operating temperature:	-5 to +55℃
CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Power:	802.3af PoE

Descrição

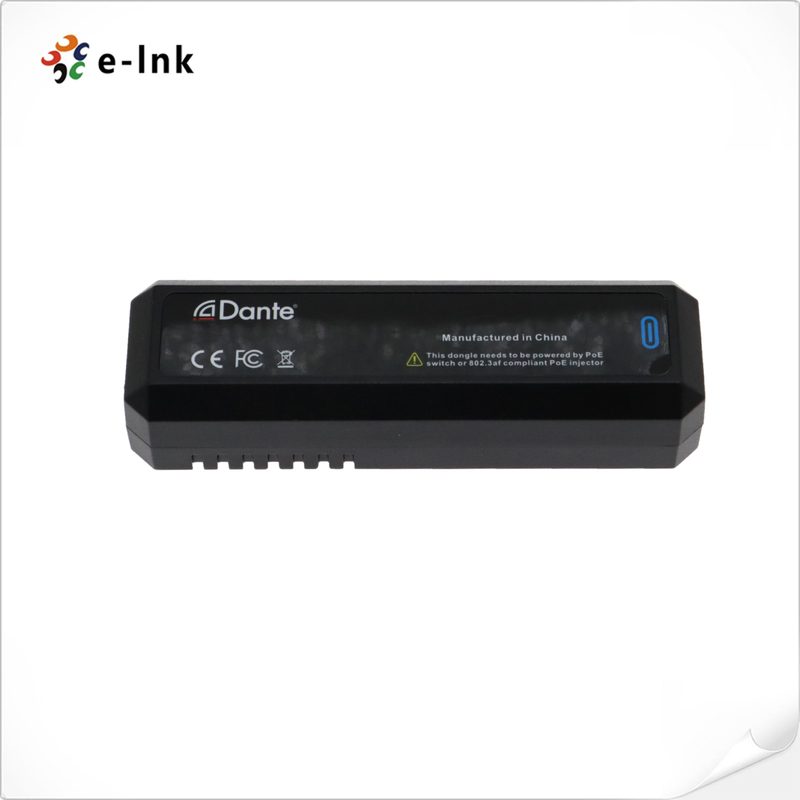

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Product Advantages

► Plug and play.

► 24-bit audio support.

► 2x1 Audio Channels

► Support power via IEEE802.3af PoE Injector

Overview

The LNK-DAN-D1 Converter can connects to your Dante network and supports 2x2 channels of bi-directional audio, allowing PCs and mobile devices to playout and receive audio with your Dante device using a USB-A/C connection.

Technical Indexes

Port
RJ45 Port	Network communication port. Green light on indicates system is ready Yellow light flash indicates link/data traffic. When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.
USB-C Port	1 x USB-C port, compatible with USB 2.0 devices.
Dante
Power	802.3af PoE
Sample Rate	48 kHz
Bit Depth	24
Type	USB 2X2
General
Operation Temperature	-5 to +55℃
Storage Temperature	-25 to +70℃
Power Consumption	9W(Max)
Dimension (WHD)	115x 34 x 28 mm
Cable length	20cm
Net Weight	70g

Ordering information

Model

Description

LNK-DAN-D1

Dante Dongle USB I/O, Digital Audio USB Bi-directional Converter,

Including 1 x Type-C to Type-C cable and 1 x Type-C to Type-A cable
