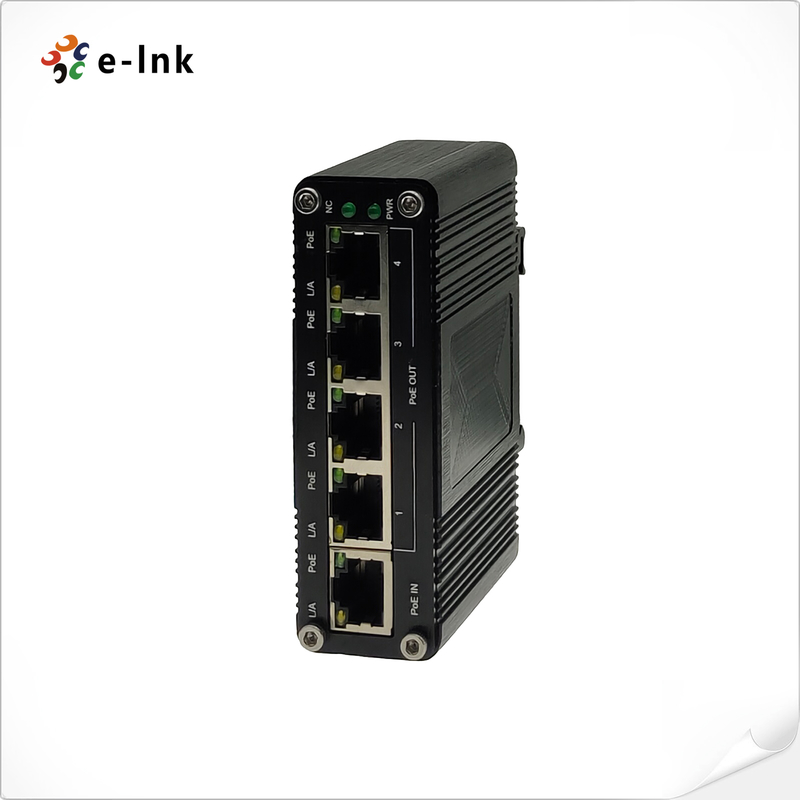

10/100/1000M PoE Extender 15.4W

Ethernet Port

PoE Input Port

10/100/1000Base-TX RJ45,

IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 95W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output

Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m

Cascade connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3bt Power over Ethernet Plus Plus

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Flow Control

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8K

Switching Capacity

10Gbps

Packet Forwarding Rate

14.88Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC6000-4-5

ESD Protection

6KV 1a Contact Discharge Level 3,

 8KV 1b Air Discharge Level 3,

Standard: IEC61000-4-2

Protection Level

IP 40

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

95 x 70 x 30 mm

Weight

0.25Kg

Casing

Aluminum Case

Mounting Options

DIN-Rail / Wall-mount

Certifications

Certifications

CE, FCC, RoHS
