Detalhes do produto
Lugar de origem: CHINA
Marca: E-link
Certificação: CE, FCC
Número do modelo: LNK-POE200W
Documento: E-link LNK-PSW Series PoE I....0.pdf
Termos de pagamento e envio
Quantidade de ordem mínima: 1pcs
Preço: Negociável
Detalhes da embalagem: Empacotamento padrão da caixa do interruptor industrial do ponto de entrada
Tempo de entrega: 7-10 dias úteis
Termos de pagamento: L/C, T/T, Western Union, MoneyGram, PayPal
Habilidade da fonte: 100000 peças/mês
Temperatura operacional:: |
0 a +40°C (32°F a 104°F) |
Tamanho (LxWxH):: |
84×47×31mm |
Caso: |
Estojo de metal |
Peso: |
120g |
Umidade: |
RH do máximo 95% (não-se condensar) |
potência de saída: |
24W/48W opcional |
Temperatura operacional:: |
0 a +40°C (32°F a 104°F) |
Tamanho (LxWxH):: |
84×47×31mm |
Caso: |
Estojo de metal |
Peso: |
120g |
Umidade: |
RH do máximo 95% (não-se condensar) |
potência de saída: |
24W/48W opcional |
Product Advantages
► Compact wall mount design
► No additional power cables required
► Built in protection circuits
► Supports 10/100M or 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

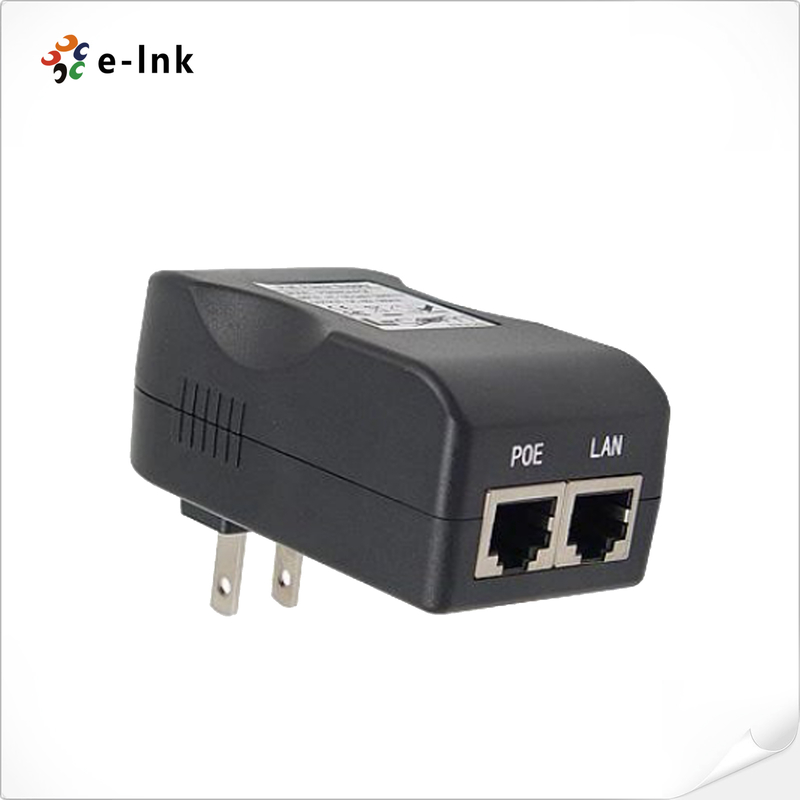

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
Parameter |
Specifications |
Data Rate |
10/100Mbps 10/100/1000Mbps |
Connectors |
2xRJ45 Jacks |
Input Power |
90-240V AC ,50-60Hz |
Output Voltage |
12V/24V/48V/52V/56VDC optional |
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
Output Power |
24W/48W optional |
Wiring |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
Over Load Protection |
115%-150% of Rated Power |
Operating Temperature |
0 to +40°C (32°F to 104°F) |
Operating Humidity |
Max. 95% RH(non-condensing) |
Dimension (LxWxH) |
84×47×31mm |
Weight |
120g |
Ordering Information
Model |
Decription |
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
