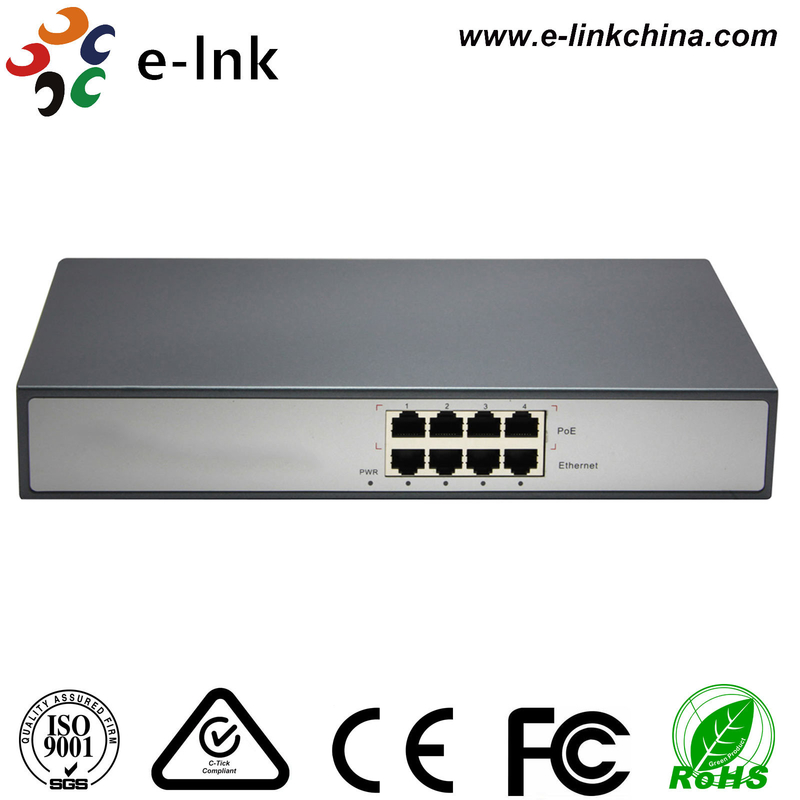

4-Port PoE Injector

Name: 4-Port PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE204 LNK-POE204AT LNK-POE304 LNK-POE304AT
Price: 57.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: E-link

Certificação: ROHS,FCC,CE

Número do modelo: LNK-POE204 LNK-POE204AT LNK-POE304 LNK-POE304AT

Termos de pagamento e envio

Quantidade de ordem mínima: 1 PCS

Preço: Negociável

Detalhes da embalagem: Pacote de Exportação Padrão do Injetor

Tempo de entrega: 3-12 dias úteis

Termos de pagamento: L/C, T/T, Western Union, MoneyGram, Paypal

Habilidade da fonte: 1000 peças/mês

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                  injector 4 port, port injector, 4 Port PoE Injector


Palavras-chave:	Adaptador Injetor PoE	Temperatura de Operação:	0 a +40°C
Dimensões (W x D x H):	280X186X44 ((H × D × W)	Potência de entrada:	90-240V C.A., 50-60Hz
Peso:	2.08kg

Palavras-chave:	Adaptador Injetor PoE
Temperatura de Operação:	0 a +40°C
Dimensões (W x D x H):	280X186X44 ((H × D × W)
Potência de entrada:	90-240V C.A., 50-60Hz
Peso:	2.08kg

Descrição

4-Port PoE Injector

4-Port PoE Injector Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 8x 10/100M RJ45 ports; 1x AC input port; 4x PoE Ports

► AC input: 90V~264V

► Compatible with IEEE 802.3af,standard(15.4W) , IEEE 802.3at,standard(25.4W)

► Coming with the Ethernet network port and PoE output port

► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

4-Port PoE Injector Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 4-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 4x RJ45 PoE ports for these 8-Port PoE injectors. This mid-span have 4x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

4-Port PoE Injector Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 4RJ-45 10/100Base-TX/ Data Input Interface 4RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	415.4W Max IEEE802.3af 430W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES

4-Port PoE Injector Ordering Information

Model	Decription
LNK-POE204	4-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE204AT	4-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE304	4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE304AT	4-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
