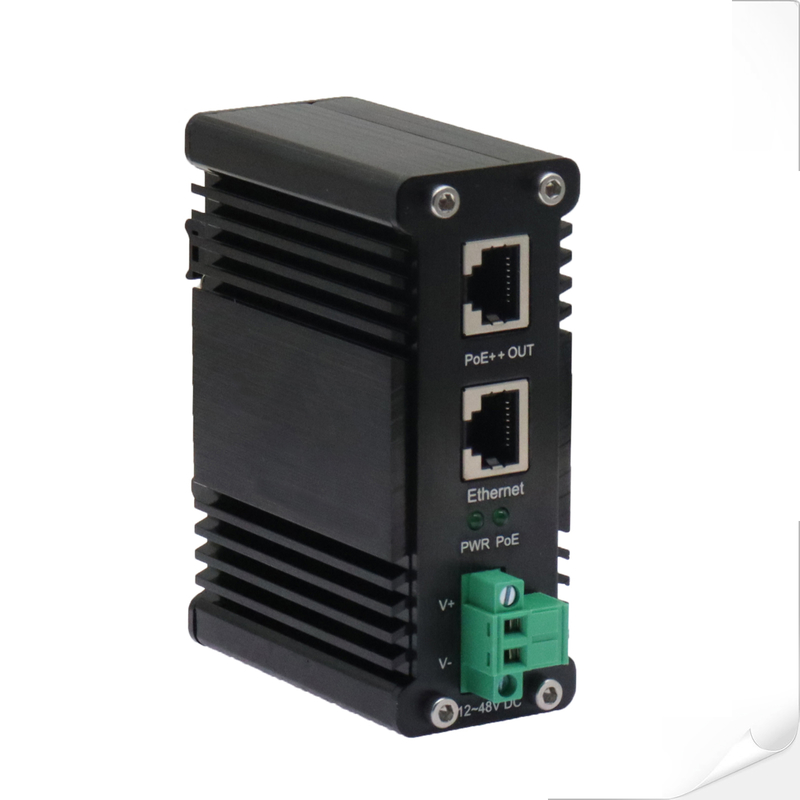

Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)

Name: Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)
Brand: E-link China Technology Co.,LTD
SKU: ZP-HINJ301-90
Price: 64.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: E-link

Certificação: ISO9001

Número do modelo: ZP-HINJ301-90

Documento: ZP-HINJ301-90 Industrial Po...et.doc

Termos de pagamento e envio

Quantidade de ordem mínima: 1 PCS

Preço: Negociável

Detalhes da embalagem: Embalagens de cartão

Tempo de entrega: 3-12 dias úteis

Termos de pagamento: L/C, T/T, Western Union, MoneyGram, Paypal

Habilidade da fonte: 1000 peças/mês

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial Gigabit 802.3bt PoE++ Injector, 12~48VDC PoE++ Injector, Industrial Gigabit 95W PoE++ Injector


Mounting Options:	DIN-Rail / Wall-mount	Dimensions (WxDxH):	95 x 70x 36mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)	Casing:	IP40 Aluminum Case

Mounting Options:	DIN-Rail / Wall-mount
Dimensions (WxDxH):	95 x 70x 36mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)
Casing:	IP40 Aluminum Case

Descrição

Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)

Advantages

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp

Overview

The ZP-HINJ301-90 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

Ordering Information

Model	Description
ZP-HINJ301-90	Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.


Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC) 0

Application

Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC) 1
