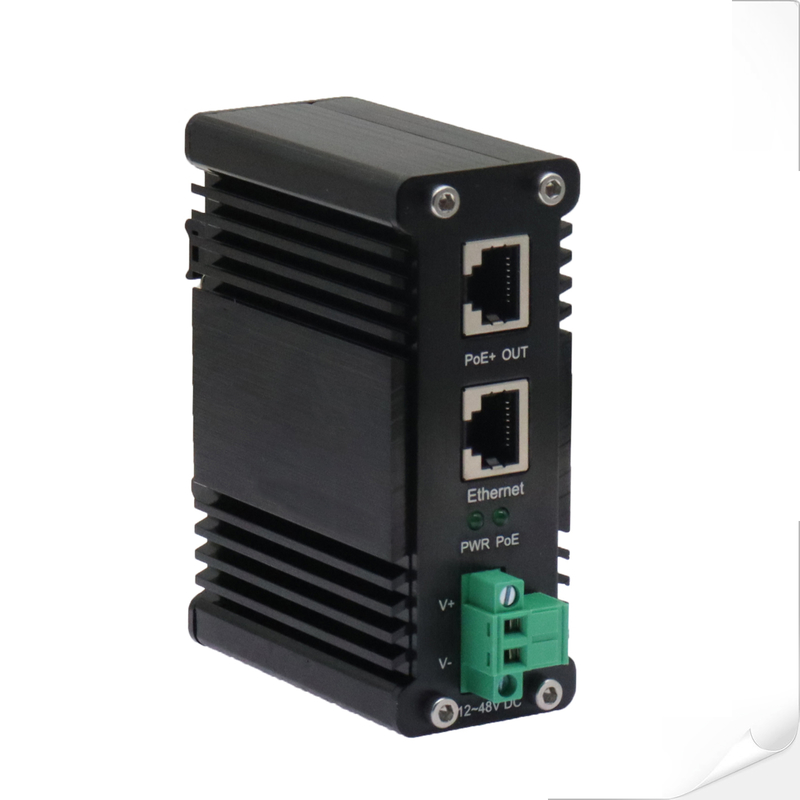

12~48V DC Power Input Industrial Gigabit PoE+ Injector

Name: 12~48V DC Power Input Industrial Gigabit PoE+ Injector
Brand: E-link China Technology Co.,LTD
SKU: ZP-HINJ301-30
Price: 64.00 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: E-link

Certificação: ISO9001

Número do modelo: ZP-HINJ301-30

Documento: ZP-HINJ301-30 Industrial Po...et.doc

Termos de pagamento e envio

Quantidade de ordem mínima: 1 PCS

Preço: Negociável

Detalhes da embalagem: Embalagens de cartão

Tempo de entrega: 3-12 dias úteis

Termos de pagamento: L/C, T/T, Western Union, MoneyGram, Paypal

Habilidade da fonte: 1000 peças/mês

Obtenha o melhor preço

Contacte agora

Especificações

Descrição

Especificações

Destacar:
                                                                                                                                                                                                                                                                                                                                                                                                      48V Industrial Gigabit PoE+ Injector, 48V DC Power Injector, Industrial Gigabit PoE+ Injector


Mounting Options:	DIN-Rail / Wall-mount	Dimensions (WxDxH):	95 x 70x 36mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)	Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)	Casing:	Aluminum Case

Mounting Options:	DIN-Rail / Wall-mount
Dimensions (WxDxH):	95 x 70x 36mm
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Input Power:	12~48VDC (Terminal Block)
Casing:	Aluminum Case

Descrição

12~48V DC Power Input Industrial Gigabit PoE+ Injector

Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

► Small Size 95 x 70 x 36 mm

► Aluminum Alloy Metal Case

► Support DIN-rail mounting and wall mounting installation

Overview

The ZP-HINJ301-30 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

ZP-HINJ301-30 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

Ordering Information

Model	Description
ZP-HINJ301-30	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately


12~48V DC Power Input Industrial Gigabit PoE+ Injector 0

Application

12~48V DC Power Input Industrial Gigabit PoE+ Injector 1
